RZR XP LONG TRAVEL KIT
FITMENT:
2014-2023 RZR XP1000/XP TURBO.
You will have to run a 15" Wheel and/or 5+2 offset wheels with this kit or use a 1" wheel spacer.
The shock mud guards cannot be used with our trailing arms.
Give your 64” RZR XP A wider, and more stable stance.
MADE OF DOMESTIC DOM (1.5X.120 WALL AND 1.25X.120 WALL)
Made from HRPO .250 sheet steel and 1.5x3-3/16 thick tubing
NO DRILLING REQUIRED
THIS KIT ONLY COMES WITH FORWARD A-ARMS
These take 17 and up model bushings.
If you have a 14-16 model, you will need to purchase bushings.
Only Steel Parts ( A Arms and Trailing Arms will come powder coated ). Additional add on charge for powder coating radius rods is available.
Kit includes:

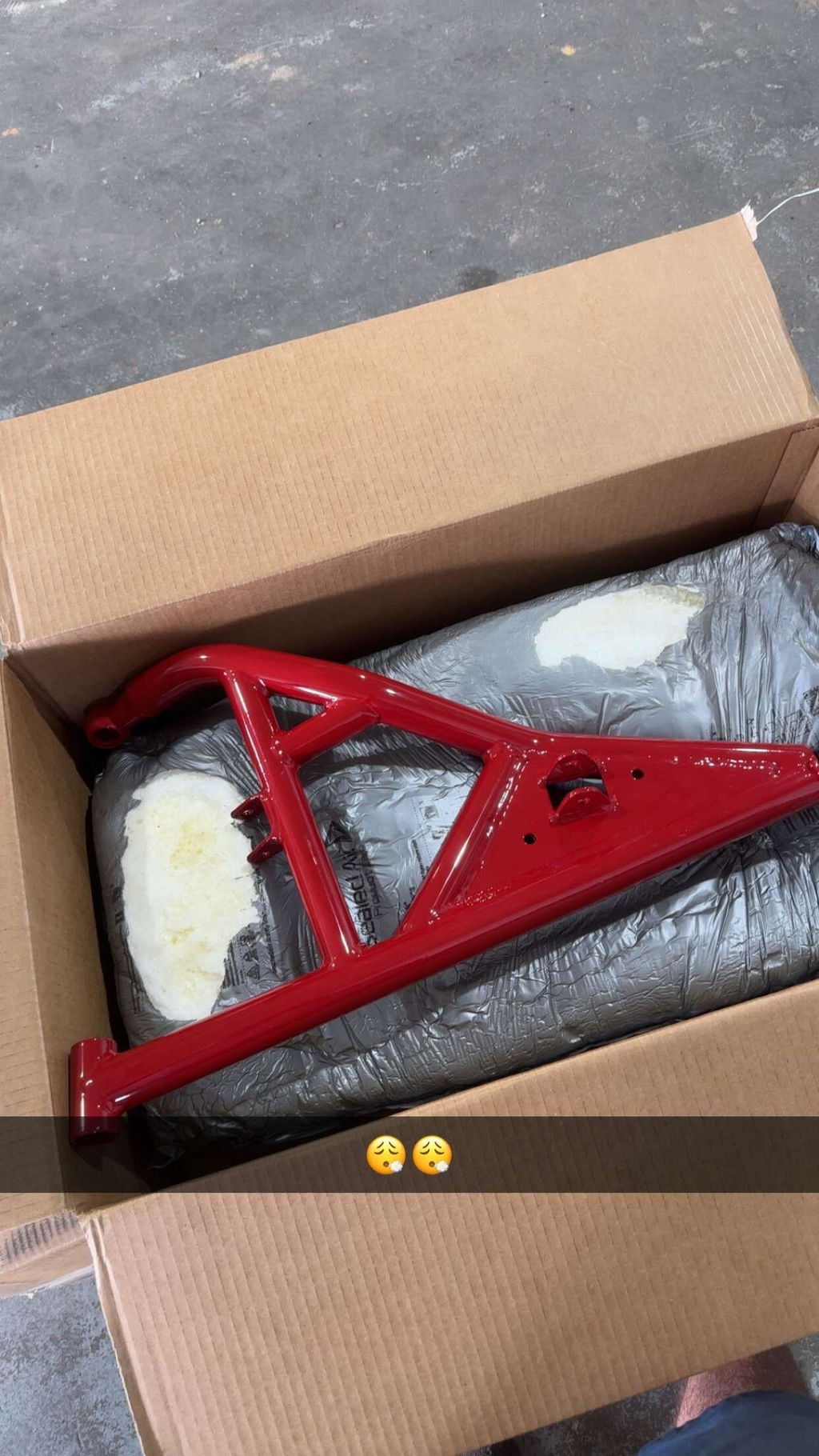

- 1.75" Forward Front upper and lower A arms. (UPPERS ARE ADJUSTABLE)( Stock size ball joints only. These are not offered for Mega Ball Joints)
- Set of Tie Rods with L&W HD rebuild-able inner joints.
- High Clearance Steel HD Trailing Arms
- High Clearance Billet Aluminum Radius Rods with adjustable uppers.
- Rear Sway Bar Links
- (1) Extended brake line for front passenger side
Comes with everything needed except axles.
Requires Turbo S axles.
**NON TURBO MACHINES WILL NEED FRONT DIFF CHANGED TO ACCEPT A TURBO AXLE
** IF YOU ARE NOT RUNNING AN RS1 DIFF YOU WILL HAVE TO SPACE YOUR DIFF 1/8" to keep the axles from hitting the frame.
L&W Fab roll cages are designed to provide additional structural support for off-road vehicles and are intended for off-road use only.
Important: Many L&W Fab roll cages are designed with a lower profile than the factory roll cage to improve appearance, reduce overall vehicle height, and enhance functionality. Because these cages may provide less occupant head clearance than the original equipment, occupants should always wear a properly fitted DOT- or Snell-approved helmet while operating the vehicle.
No roll cage can prevent all injuries or fatalities. Installation or use of this product does not guarantee protection from injury or death in the event of a rollover, collision, or other accident.
This product is intended to be used with properly installed multi-point safety harnesses that are correctly adjusted and securely fastened before operating the vehicle. Failure to wear a helmet, properly use safety harnesses, or operate the vehicle in a safe manner can significantly increase the risk of serious injury or death.
The purchaser and operator are solely responsible for ensuring proper installation, regular inspection, maintenance, and safe operation of the vehicle. Any modification, alteration, improper installation, misuse, or use of this product outside its intended purpose may compromise its performance and increase the risk of injury.
L&W Fab shall not be liable for any indirect, incidental, consequential, or special damages arising from the installation, use, misuse, modification, or inability to use this product, except as required by applicable law. By purchasing, installing, or using this product, the purchaser acknowledges and accepts the inherent risks associated with off-road vehicle operation.
WARNING: Off-road driving is inherently dangerous. Always wear a properly fitted helmet, ensure all occupants are secured with properly installed and adjusted safety harnesses, keep all arms and legs inside the vehicle, and operate the vehicle responsibly and within its intended purpose.
