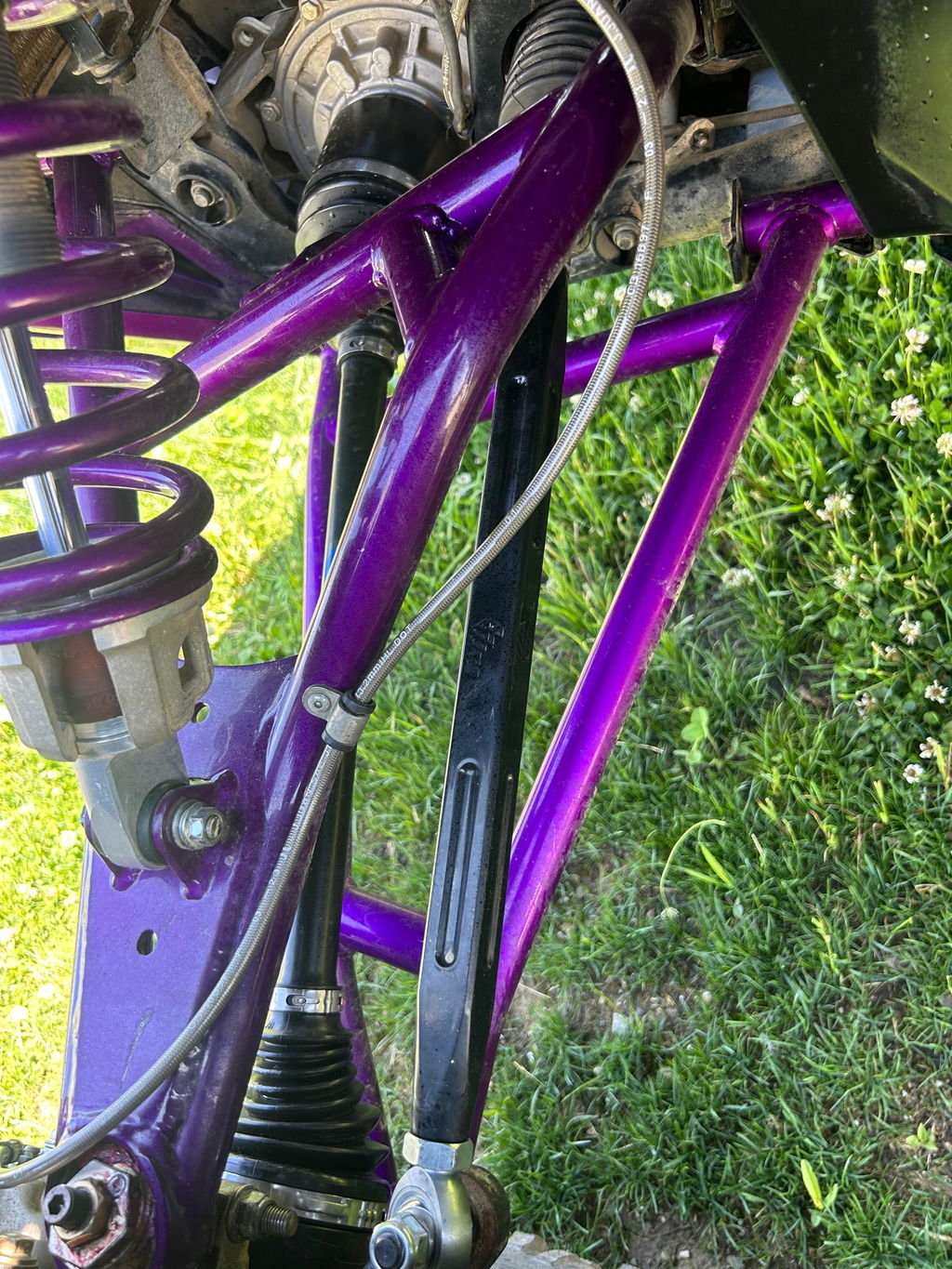

These Tie Rods Fit Polaris RZR 1000 and Turbo
2014-2026 models
Specs on the Rods:
These are factory style ball and socket tie rods.
This listing is for a SET
6061 Aluminum.
Made in America
Lifetime Warranty on rod itself.
Comes with Spindle Ends (You do not need to purchase the spindle ends separate from this kit, unless you need a replacement spindle end)
To determine whether you have M14 or M16, please measure the ends of you factory tie rods (the side that screws into the rack). If the end is less the 1/2″ you will need M14, if it is over 1/2″ you will need M16. The turbo model usually takes M16 ( measuring is recommended ), the 1000 model is not consistent and will need to be measured. 2016 Turbo will always be M14
Factory ends are not warrantied, only the tie rod itself.
Specs for HD Rebuild-able Tie Rod Ends:
Fully rebuildable
Comes assembled with grease ready for installation Compatible with all L&W tie rods plus many others Starts with heat treated 4140 Black oxide finished
100 percent made in USA
This product holds an 18 month warranty
Options:
1) M14x1.5 rack side by m14x1.5 tie rod side. 5-5/8″ total length. (4″ length from rack to end of Jam nut)
2) M16x1.5 rack side by m14x1.5 tie rod side. 5-5/8″ total length. (4″ length from rack to end of jam nut)
L&W Fab roll cages are designed to provide additional structural support for off-road vehicles and are intended for off-road use only.
Important: Many L&W Fab roll cages are designed with a lower profile than the factory roll cage to improve appearance, reduce overall vehicle height, and enhance functionality. Because these cages may provide less occupant head clearance than the original equipment, occupants should always wear a properly fitted DOT- or Snell-approved helmet while operating the vehicle.
No roll cage can prevent all injuries or fatalities. Installation or use of this product does not guarantee protection from injury or death in the event of a rollover, collision, or other accident.
This product is intended to be used with properly installed multi-point safety harnesses that are correctly adjusted and securely fastened before operating the vehicle. Failure to wear a helmet, properly use safety harnesses, or operate the vehicle in a safe manner can significantly increase the risk of serious injury or death.
The purchaser and operator are solely responsible for ensuring proper installation, regular inspection, maintenance, and safe operation of the vehicle. Any modification, alteration, improper installation, misuse, or use of this product outside its intended purpose may compromise its performance and increase the risk of injury.
L&W Fab shall not be liable for any indirect, incidental, consequential, or special damages arising from the installation, use, misuse, modification, or inability to use this product, except as required by applicable law. By purchasing, installing, or using this product, the purchaser acknowledges and accepts the inherent risks associated with off-road vehicle operation.
WARNING: Off-road driving is inherently dangerous. Always wear a properly fitted helmet, ensure all occupants are secured with properly installed and adjusted safety harnesses, keep all arms and legs inside the vehicle, and operate the vehicle responsibly and within its intended purpose.
